1994 Hawker 800A

Home > 1994 Hawker 800A

1994 Hawker 800A

Serial Number 258249

Full Specifications Sheet

Interior 800A Floorplan

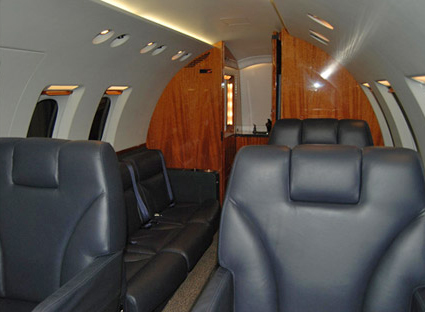

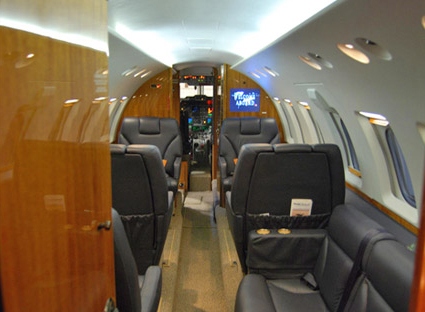

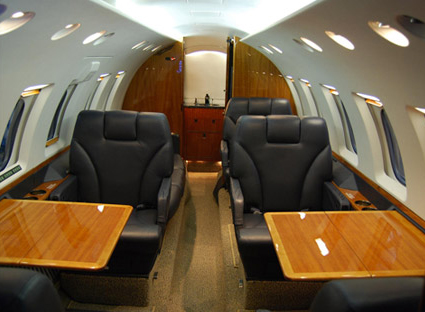

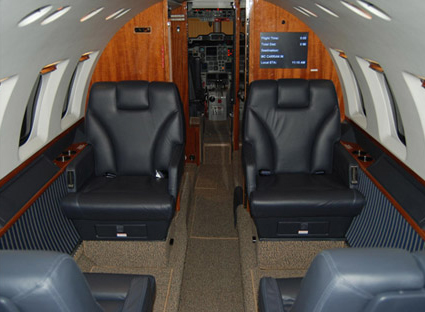

Eight Passenger configuration with a forward club of four individual seats, plus a single on left opposite a three-place divan on the right side. Interior colors consist of the polar white ultra leather headliner and window panels with blue leather seats and divan, high gloss wood package, forward galley, with aft lavatory. New AC outlets (2) in forward club area combined with iPod interface to cabin entertainment.

Exterior

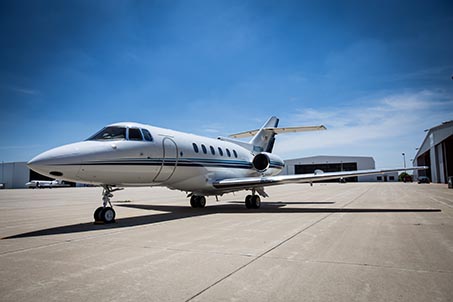

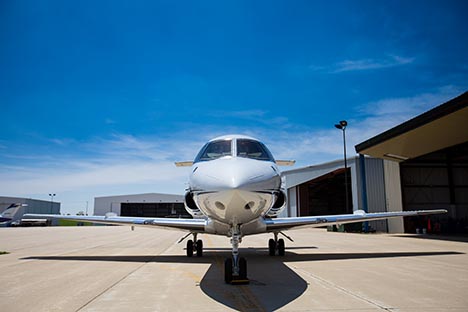

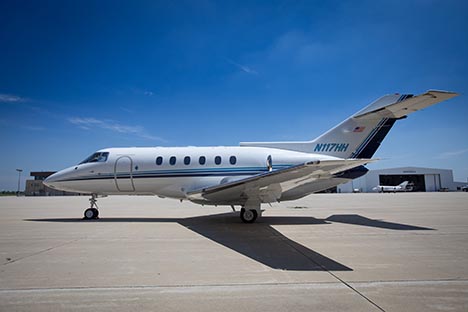

Overall Matterhon White with three stripes in Bahamas Blue, Squadron AG Blue and Aristo Blue. Includes optional exterior paint treatment.

Airframe

Total Airframe Time:

7770.7  Hours since New; 5289 Landings

Power Plant

Left Engine:

Model TFE731-5R-1H
S/N P-91621
3380.4 (Since Core)

Right Engine:

Model TFE731-5R-1H
S/N P-91620
3380.4 (Since Core)

MSP GOLD Contract #440037334

APU

Solar T-62T-40C8D-1                                     849.8 (Since Major Shop Visit)

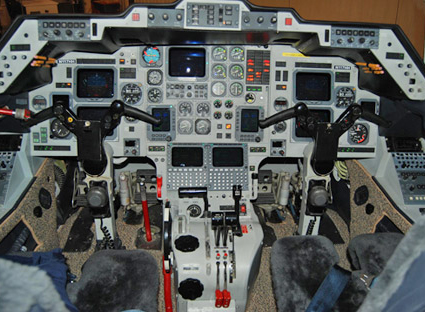

AVIONICS – HAPP Contract # 440043525

Honeywell SPZ-8000 / Primus II
Honeywell SPZ-8000 Flight Director (DAFCS)
Honeywell DFZ-800 Autopilot
Dual Honeywell AHZ 600 AHRS
Dual Honeywell EDZ-817 EFIS
Honeywell EDZ 817 MFD
Dual Honeywell FMZ-2000 (5.2) FMS, w/Dual 12 Channel GPS
Global AFIS Provisions
Dual Honeywell RNZ-850 Comms (8.33)
Dual Honeywell RNZ-850 Navs w/FM immunity
Dual Honeywell RNZ-850 DME
Dual Honeywell RNZ-850 ADF
Dual ADZ-810 ADC
Dual Honeywell RCZ-850 Transponders (Mode S)
Dual King KHF-950 HF w/SELCAL
Honeywell Primus 870 Radar
Honeywell LSZ 850 LSS (Lightning Sensor System)
Fairchild A1001 CVR
Allied Signal CAS 67A, TCAS II w/change 7
Allied Signal EGPWS – Class B
ELT
SFENA STBY Attitude Indicator
Wulfsberg, Flitephone VI, w/Dual Handsets



INTERIOR

Hawker 800XP interior style
Flight Display Systems (moving map technology with 15.1 monitor)
Flight Display Systems iPod Cable Adapter
CD/DVD

Eight Passenger configuration with a forward club of four individual seats, plus a single on left opposite a three-place divan on the right side.  Interior colors consist of polar white Ultraleather headliner and window panels with blue leather seats and divan, high gloss wood package, forward galley, with aft lavatory.  AC outlets (2) in forward club area combined with personal audio interface to cabin entertainment in October 2010 by Goderich Aircraft Inc.



EXTERIOR

Overall Matterhorn White with three stripes in Bahamas Blue, Squadron AG Blue and Aristo Blue.  Includes optional exterior paint treatment in October 2010 by Goderich Aircraft Inc.



SPECIAL FEATURES AND OPTIONS

Enrolled in Honeywell HAAP (Honeywell Assured Avionics Program).
Cabin – iPod interface
Two AC outlets in club seating area
Full Galley – Includes Coffee Maker
Hawker 800XP interior style
Long Range Oxygen
Wolfsberg Flitephone VI
Dual Davtron M877 Digital Clocks
Eligible RVSM
On CAMP
Current FAR 135



MAINTENANCE

Inspections:
B done Oct 2014
C done Oct 2010
D done Oct 2010
E done Oct 2017
F done 2016
G done Oct 2014
Landing Gear:  Last done – October 2017;  Next Due – October 2029
Windshield A panels: New Left – October 2012; New Right – November 2011





No Known Damage History.



ALL SPECIFICATIONS SUBJECT TO VERIFICATION UPON INSPECTION.  AIRCRAFT SUBJECT TO PRIOR SALE OR REMOVAL FROM MARKET.
